The EEG machine is a complex piece of equipment and is made up of numerous electronic components. It can be simplified by breaking it down to the main parts.
These include:
• headbox
• amplifiers
• filters
• output/writing system
• calibration

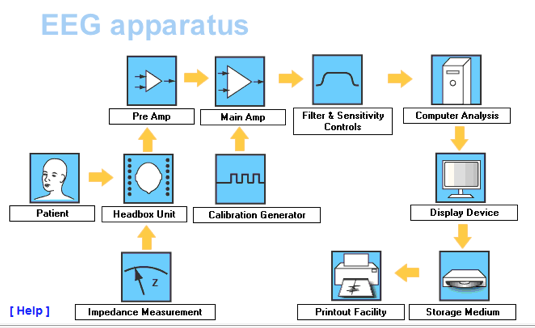

Here is a block diagram of the EEG apparatus
